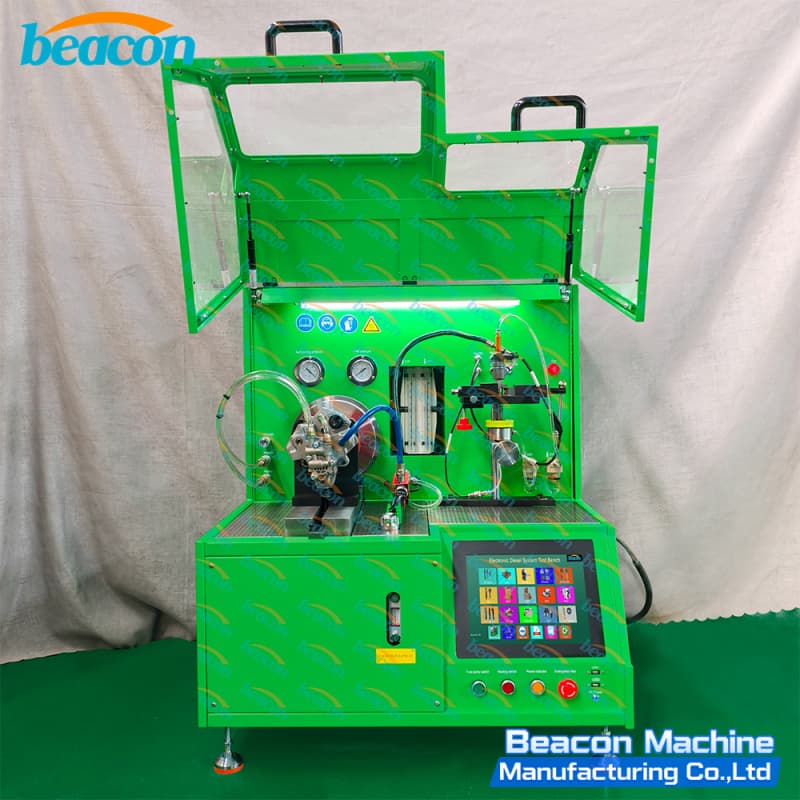

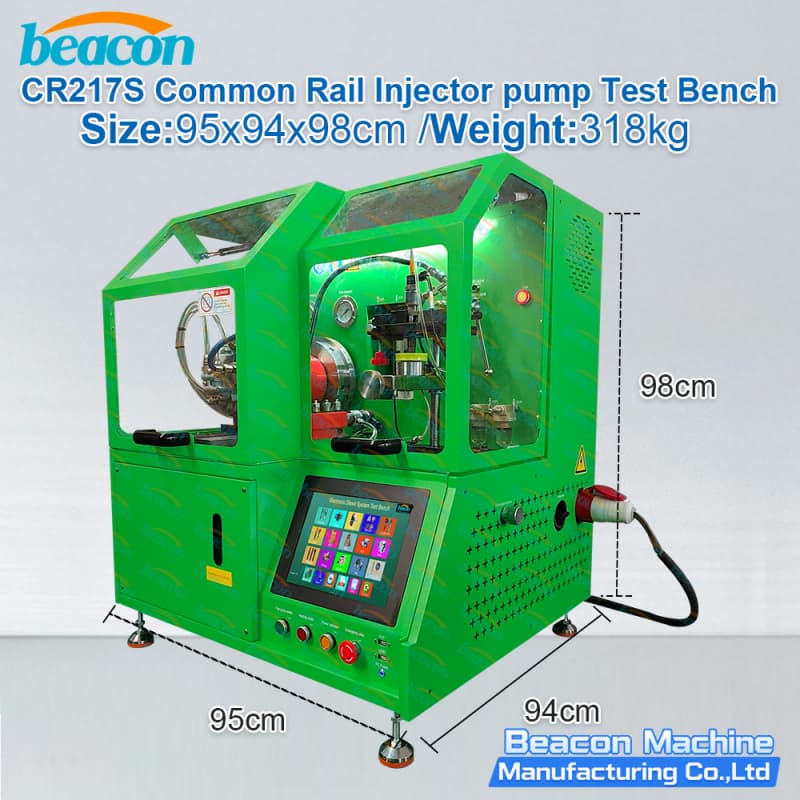

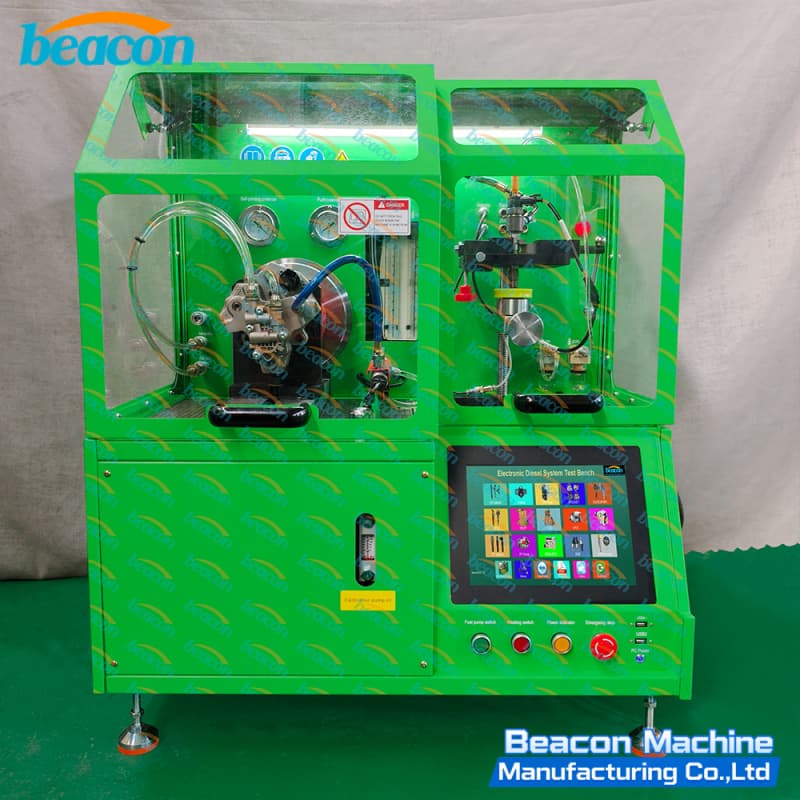

CR217S Advanced IMA Coding Atomization Assessment Rig | Common Rail Diesel Injector Tester

Product Description

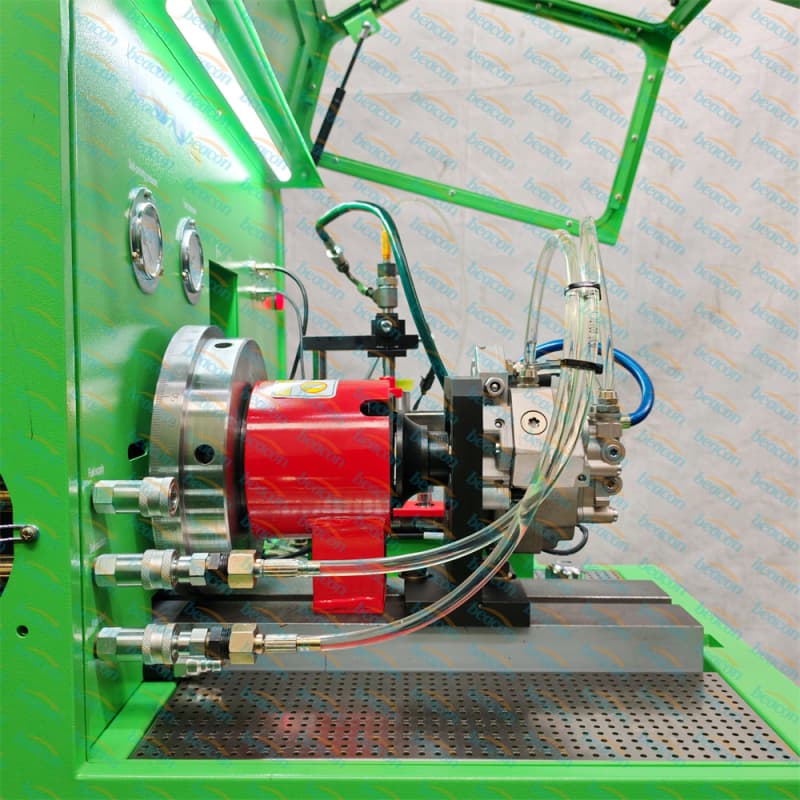

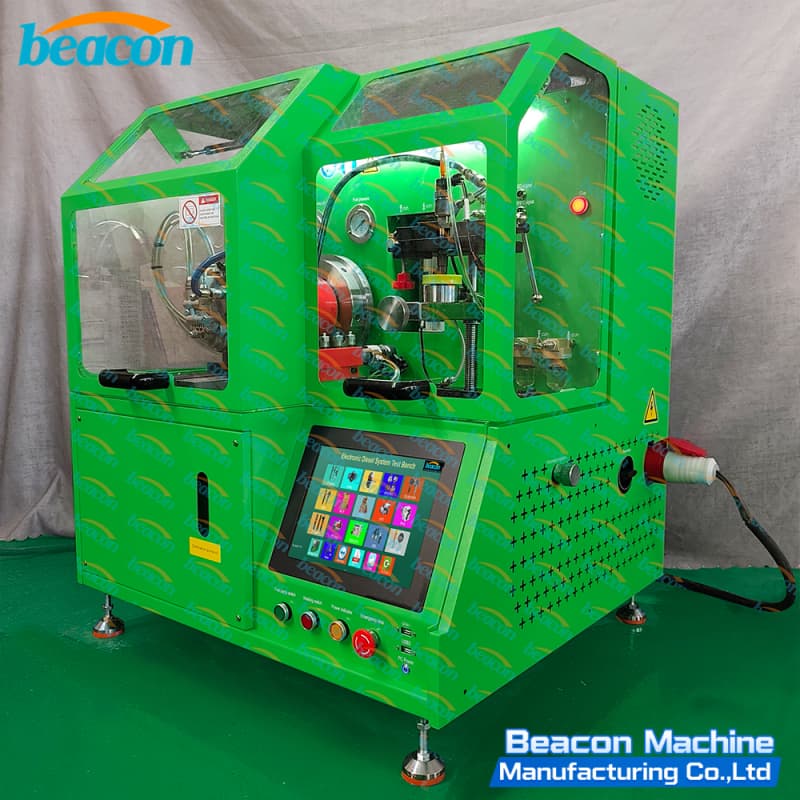

The CR217S high pressure fluidic dispersion analyzer shifts the focus from basic volumetric checks to intricate droplet distribution and response analysis. In contemporary diesel engines, optimal combustion relies heavily on exact micro-second fuel delivery. Exploring the architectural evolution of modern piezoelectric and solenoid hydrodynamic systems reveals why raw rail pressure isn't the sole metric for success; consistent spray symmetry and instantaneous armature response are equally vital for emissions control.

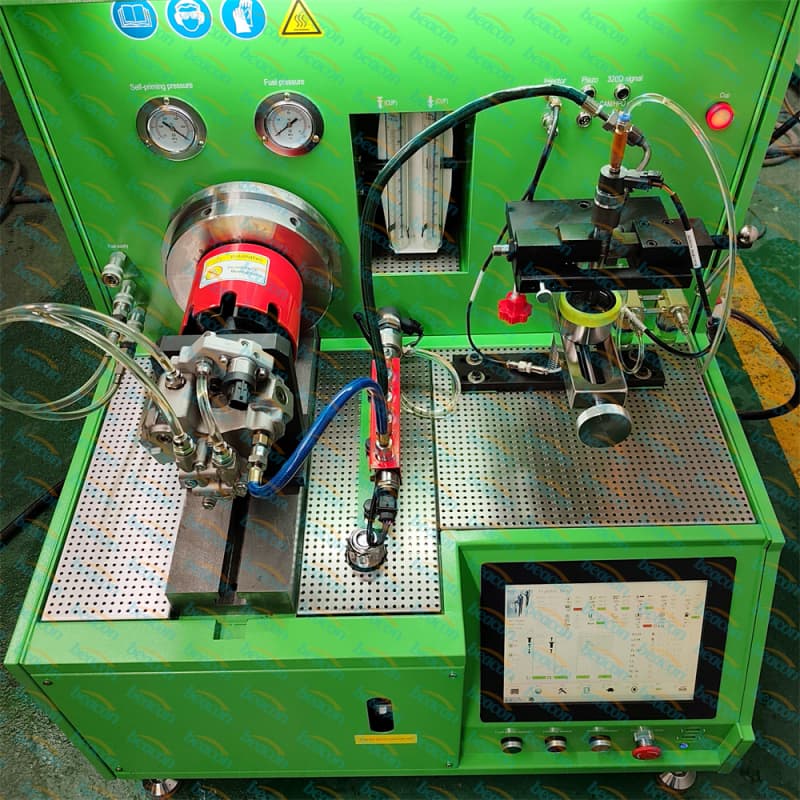

By acting as a sophisticated dynamic leakage detection testing console, this equipment precisely monitors static backflow and dynamic stroke discrepancies under extreme thermal conditions. When dealing with heavily degraded components, pairing this rigorous assessment phase with a preliminary ultrasonic cavitation cleaning basin guarantees that microscopic carbon deposits do not skew the delicate digital flow sensor readings during the final test cycle.

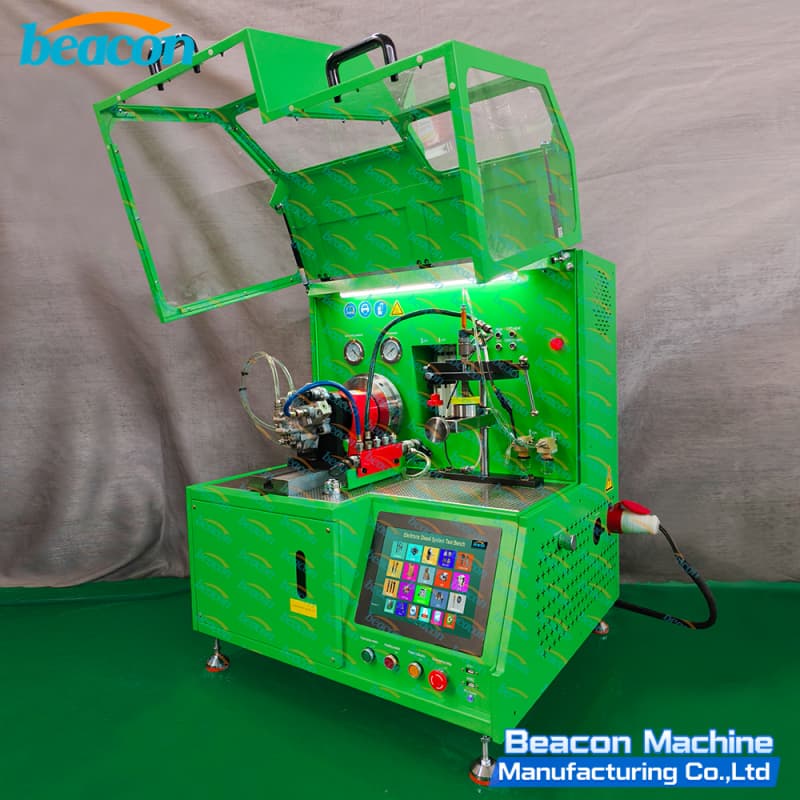

The cornerstone of this machine is its capability as an advanced IMA coding atomization assessment rig. Generating highly precise correction codes is mandatory for modern Engine Control Units (ECUs) to balance cylinder power output. For an in-depth look at how these compensation values interact with vehicle modules, our engineering notes on the mathematics behind IMA generation and ECU synchronization explain the calibration algorithm in comprehensive detail.

Scene diagram

Details

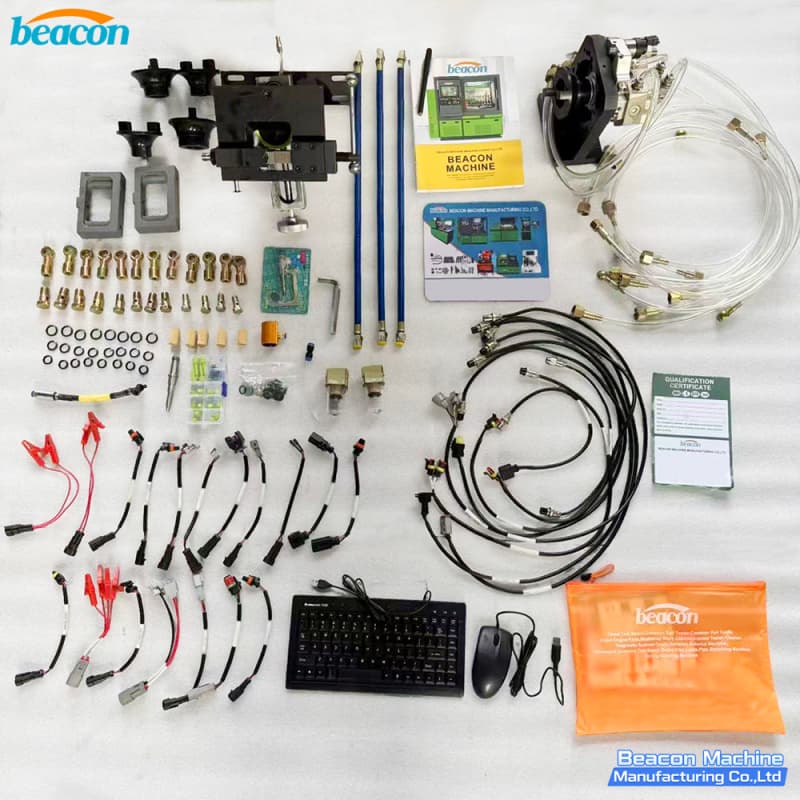

Accessories
